How do surveyors measure land well? They use a laser distance meter.
These small tools have changed surveying. They use laser rangefinder technology. They measure fast. They measure well. They make work easier.
A laser distance meter shoots a laser at a target. It measures how long the beam takes to come back. Then it knows the distance. It’s simple.
Surveyors use them. Engineers use them. GIS technicians use them. Construction teams use them. Everyone who measures land uses laser meters.
This article teaches you about laser meters. You learn how they work. You learn when to use them. You learn to use them right.

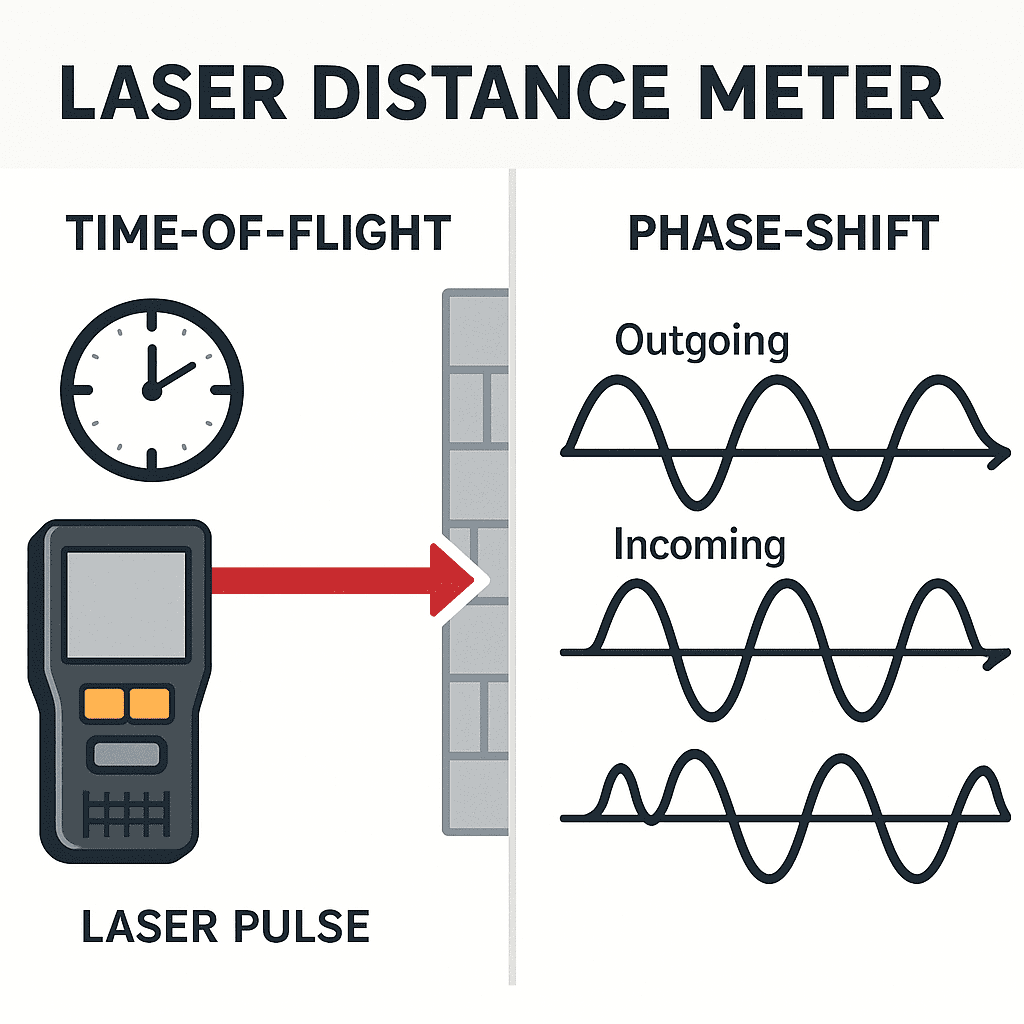

How Laser Distance Meters Work?
Laser meters use two main methods.
Time-of-Flight Measurement
This is simple. The meter sends a laser pulse at a target. The pulse hits and comes back. The meter times this. Light travels at 300,000 km per second. The meter uses this math:
Distance = (Speed of Light × Time) ÷ 2
We divide by 2 because the laser goes out and back.
Phase-Shift Technology
This method is different. The meter sends a beam that changes. The meter compares the out beam and the back beam. It sees the phase shift. Then it finds distance. This works best for short range and bright light.
Core Parts Inside Your Laser Meter
Every laser meter has these parts:
When you push the button, the laser fires. The sensor catches light. The chip does the math. You get your distance in less than one second.
Key Components of a Laser Distance Meter
Let’s look at each part.
The Laser Diode and Beam
The laser diode is the main part. It makes a thin beam of light. Most meters use infrared lasers. You can’t see infrared. But it works well for measuring. The beam can be tight or wide. A tight beam means better accuracy at far range.
Optical Lens System
The lens focuses the beam out. It also catches the light that comes back. Good lenses help accuracy. Many meters use many lens pieces. This makes the view better and clearer.
The Photodiode Receiver
The photodiode feels the light that comes back. It turns light into power. Then the meter reads this. How good is the photodiode? That tells you how well the meter works in bright sun or dim light.
Processing Chip and Algorithms
New meters have smart chips inside. These chips run smart programs. They filter out noise. They fix for air. They do the math fast. Some chips can measure many points. Some can find areas and volumes.
Display and Interface
The display shows your result. Most have LCD or LED screens. Many have Bluetooth. This lets you send data to phones, pads, or GIS tools. Wireless data makes work easy.
Power Management
Most meters use recharged batteries or AA batteries. Batteries last 8 to 40 hours. This depends on how much you use them. Good meters save power to make batteries last longer.
Types of Laser Distance Meters for Surveying
Not all laser meters are the same. Different jobs need different tools.
Handheld Laser Distance Meters
These are the most portable. They fit in your pocket. They weigh less than a pound. They work well for:
Most handheld meters measure up to 100 meters. Some reach 300 meters. They cost less. They are easy to use. Just aim and push a button.
Tripod and Integrated Meter Systems
For big jobs, use fixed meters. These sit on tripods. They attach to other tools. Benefits are:
These need more training. But they give better accuracy for large jobs.
Reflectorless vs. Reflector-Based Models
This choice matters for accuracy.
Reflectorless Laser Meters
These sense light that bounces off any surface. Any surface works. Concrete, brick, wood, stone. No special target needed. This is fast. But it’s less accurate at far range. Dark surfaces don’t work.
Reflector-Based Laser Meters
These use special shiny prisms. The prism bounces the laser beam back just right. These are more accurate. They work at far range. But you must carry and place prisms at each point.

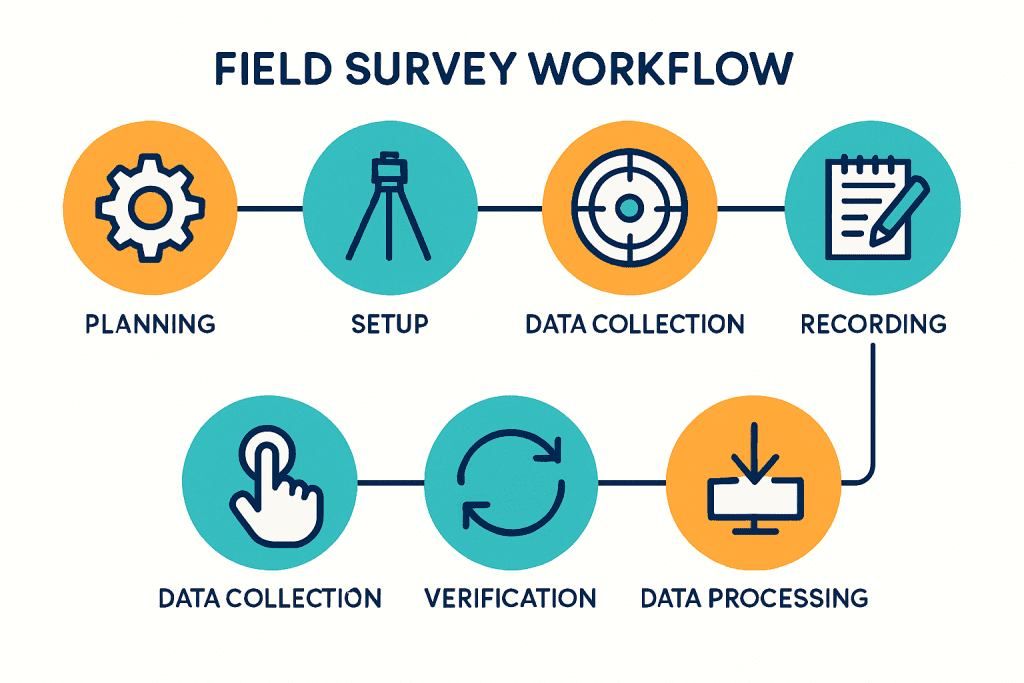

Step-by-Step: Using a Laser Distance Meter in Field Surveys
Ready to measure? Follow these steps.
Step 1: Prepare Your Equipment
Before you measure:
Step 2: Set Up
Stand at your start point. Keep feet apart. Stay steady. Use a tripod if needed. Make sure it’s level. Make sure it’s stable. Unlock the meter.
Step 3: Aim at Your Target
Point your meter at the target. Use the laser dot to aim. For no-mirror meters, aim at the center. For mirror meters, aim at the mirror.
Step 4: Take the Measurement
Push the button. Hold still. Don’t move. Wait for the result. Most take less than one second.
Step 5: Record Your Data
Write down your result right away. Note the point name and distance. Write any notes. Modern meters send data to your phone via Bluetooth.
Step 6: Measure More Points
Repeat steps 3-5 for each point. Most meters save all results in memory.
Step 7: Download and Check
At the office, download your data. Convert to your format. Check all numbers. Upload to your GIS database.
Troubleshooting
No Signal Error
Target is too far or laser didn’t reach. Move closer. Aim lower. Check your battery.
Inconsistent Readings
Surface is too shiny or too dark. Use a mirror target. Wait for clouds if very sunny.
Meter Won’t Turn On
Battery is dead. Charge or replace it. Check battery contacts are clean.
Accuracy and Calibration: Ensuring Precise Measurement
Accuracy matters in surveying. Small errors become big problems.
Factors Affecting Laser Measurement Accuracy
Distance to Target
Longer distance means less accuracy. A meter might be ±2mm at 100 meters. It might be ±4mm at 1,000 meters.
Target Surface Properties
Dark surfaces absorb laser light. Shiny surfaces cause problems. Wet surfaces spread the laser. Matte, neutral surfaces work best.
Atmospheric Conditions
Heat affects parts and laser light. Wet air affects how light moves. Fog and rain block lasers. Measure in stable weather.
Laser Beam Spread
As the laser travels, it spreads out. This is beam spread. Tight beams mean better far range accuracy. Cheap meters have wide beams.
Your Technique
Your method matters. Shaky hands cause error. Bad aim causes error. Good method improves accuracy.
Calibration Checklist for Surveyors
Keep your meter accurate:
Common Errors and How to Avoid Them
Mirror Misalignment
Mirror isn’t straight to the laser beam.
Fix: Use locking mirror mounts. Check before each shot.
Heat Drift
Heat causes parts to change size.
Fix: Let meter sit 15 minutes in new places. Keep sun off the meter.
Signal Issues
Other lasers or bright sun overwhelm the sensor.
Fix: Use mirror targets in bright conditions. Avoid noon sun if possible.
Your View Angle
You view the laser pointer from an angle.
Fix: Look straight down at the laser pointer.
Applications of Laser Distance Meters in Surveying and Construction
Laser meters work well in real situations.
Land Surveying and Boundary Mapping
Property lines need accurate measurement. Surveyors use laser meters to:
A surveyor measures a 200-meter line in a few minutes with a laser meter. The tape method takes hours.
GIS Data Collection and Mapping
Geographic Information Systems need accurate data. Surveyors collect this using laser rangefinder tools. Results go right into GIS software. This creates digital maps.
Example: To map a water line needs many point shots. A Bluetooth laser meter sends each shot to GIS software. This stops manual entry mistakes.
Construction Stakeout and Layout
Before construction starts, crews mark the building shape. Laser meters help with stakeout. This puts marks at exact spots. The building goes in the right place.
Volume and Area Calculations
Many laser meters can find area and volume. Measure two corners of a wall. The meter finds the wall length. Measure more walls. Some meters find total floor area. For yards, find mulch volume.
Real Field Examples: Customer Scenarios
Theory works in real situations too.
Scenario 1: Property Boundary Survey
Sarah is a surveyor. She surveyed a 2-acre home property. The line went through thick woods. Using a handheld laser meter with mirrors, she:
Result: Saved 3 hours of work. Accuracy: ±5mm across all 2 acres.
Scenario 2: Construction Stakeout Project
Marcus runs a construction site. The building must sit in an exact place. He used a laser meter with tripod:
Result: Layout done in 45 minutes. No redo work. Saved $50,000 in fixes.
Scenario 3: GIS Mapping for Municipal Utility Project
A city needed to map gas lines before road work. A GIS worker with a laser rangefinder:
Result: Job done 2 days faster. Zero utility hits. Prevented emergency work.
Cost Breakdown: Laser Distance Meters for Surveying
Budget matters. Here’s what meters cost:
Basic: $200-$400. Pro: $500-$1,200. Advanced: $1,500-$3,000. Enterprise: $3,000-$8,000.
Tripod: $100-$300. Mirrors: $50-$200 per set. Yearly upkeep: $0-$2,000. Software: Free to $5,000+ per year.
Small surveyors get back a $1,000 meter cost in 2-3 jobs. Big construction firms justify enterprise systems through time savings.
Eligibility Calculator & Handy Checklist for Choosing a Laser Meter
Not sure which meter for you? Use this list:
Range You Need
Under 50 meters? Buy handheld ($200-$500). Need 50-300 meters? Buy pro handheld ($500-$1,200). Need 300+ meters? Buy tripod system ($2,000+).
Accuracy You Need
General work? ±5mm works (handheld no-mirror). Property lines? Need ±2mm (mirror-based). Civil work? Need ±1mm (tripod system). Legal surveys? Need ±1mm (pro equipment).
Where You Work
Inside? Use handheld no-mirror. City areas? Use handheld or mirror-based. Open land? Use mirror-based with tripod. Thick trees? Use mirror-based. All places? Use no-mirror plus mirrors.
Data Transfer
Just numbers? No special features. Type in data? Basic Bluetooth. Auto transfer? Advanced Bluetooth. Full system? Cloud-based.
Your Level
New to this? Start with handheld no-mirror. Mid-level? Pro handheld. Expert? Tripod systems.

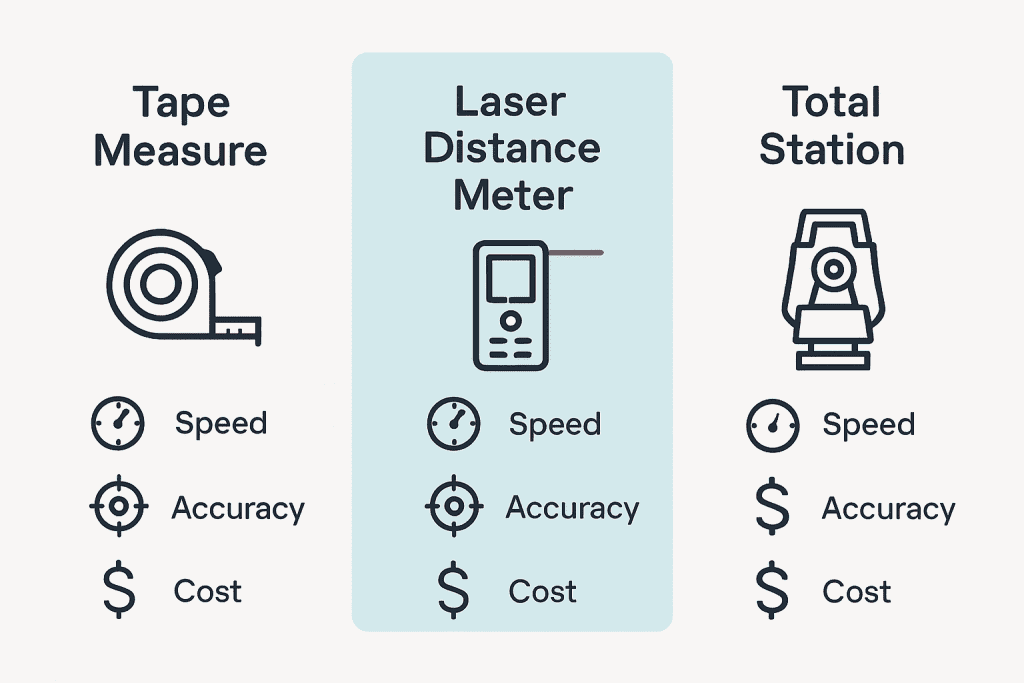

Laser Distance Meter vs. Alternative Surveying Tools
How do laser meters compare?
Laser Meter vs. Measuring Tape
Laser: 5-10 shots per minute. Tape: 1-2 per minute. Laser: ±2-5mm accurate. Tape: ±10-50mm accurate. Laser: covers 10-2,000 meters. Tape: covers 10-100 meters. Laser: $200-$3,000. Tape: $20-$100.
Use tape for fast checks and tight budgets. Use laser meter for real work.
Laser Meter vs. Total Stations
Laser: distance only. Total station: distance and angles. Laser: sets up in 1 minute. Total: takes 10-20 minutes. Laser: $500-$3,000. Total: $8,000-$50,000.
Use laser for easy jobs. Use total for hard surveys.
Laser Meter vs. GPS Survey Tools
Laser: ±1-5mm accurate. GPS: ±1-5cm to ±1mm. Laser: works inside. GPS: no inside work. Laser: covers 100-2,000m. GPS: covers whole world. Laser: $300-$3,000. GPS: $5,000-$30,000.
Use laser for local surveys. Use GPS for large area maps.
Timeline Expectations and Maintenance Best Practices
Realistic Time Expectations
Setup: 10-15 minutes. Per point: 30 seconds to 2 minutes. 10-point survey: 15-25 minutes. 100-point GIS survey: 2-4 hours. Work: 30 minutes to 2 hours. Full 5-acre survey: 3-5 hours total.
Maintenance Schedule
Each week: Wipe lens. Check battery. Test power.
Each month: Test accuracy. Check for damage. Clean housing.
Each quarter: Deep clean lens. Test in different light. Test Bluetooth.
Each year: Send for check. Replace batteries. Update programs.
Storage Tips
Keep in hard case. Store in cool, dry place. Remove batteries if storing over 3 months. Keep mirrors in safe spot.
Expert Tips from Professional Surveyors
Experts share their best tips:
Tip 1: Always Measure Twice
Never trust one shot. Take two. If they match, you’re good. If they don’t, look closer.
Tip 2: Stabilize Your Body
Plant your feet. Breathe steady. Lock your arms. Small moves cause mistakes.
Tip 3: Use Mirrors in Hard Conditions
No-mirror seems easy, but mirrors work better. Keep mirrors in your bag. The 30 extra seconds means accuracy.
Tip 4: Write Down Conditions
Note time, temp, surface type, and blocks. This helps explain odd results later.
Tip 5: Calibrate Often
Don’t wait each year. Check accuracy every 2-3 weeks on active jobs. Drift ruins surveys.
Tip 6: Buy Good Optics
Cheap meters cost more in redo work. Good optics pay for themselves in speed and accuracy.
Tip 7: Carry Backup Battery
Dead battery stops work. Carry extra or a charger.
Tip 8: Master Your Meter
Learn all features. Read the guide. Practice often. Know each button. Know each mode. Speed comes with practice.
Frequently Asked Questions: Laser Distance Meters in Surveying
What is the maximum range for a laser distance meter?
Handheld no-mirror reach 100-300 meters. Pro handheld reach 500-1,000 meters. Tripod with mirrors reach 2-5 kilometers or more. But max range means perfect conditions. Real-world range is less.
Are laser distance meters accurate for outdoor measurements?
Yes. Modern meters hit ±2-5mm at hundreds of meters. But bad weather hurts accuracy. Rain, fog, and heat reduce it. Measure in stable weather. Use mirrors in bright sun.
How do you ensure your laser meter readings are reliable?
Calibrate each month. Use good method: steady pose, center aim, proper mirrors. Take many shots. Compare them. Write down conditions. Keep your meter clean.
Do weather conditions impact laser measurement?
Yes. Heat affects parts and laser light. Wet air affects light path. Fog and rain block beams. Wind can move mirrors. Measure in clear, stable weather. Wait 15 minutes for meter to settle in new temps.
Can Bluetooth laser meters export data to GIS software?
Yes. New meters with Bluetooth link to apps on phones and pads. Apps save shots and data. Data moves to GIS software like ArcGIS and QGIS. Some meters link right to GIS. Check meter and app work together.
Common Mistakes and How to Avoid Them
Mistake 1: Skipping Calibration
Many skip calibration thinking the meter still works. Small drifts pile up. A 2mm drift per 100 meters ruins a 1-kilometer survey.
Fix: Calibrate every 2-3 weeks. Test against known spots.
Mistake 2: Measuring Shiny Surfaces
Shiny surfaces (steel, glass, water) cause laser issues. Light bounces wrong.
Fix: Aim at dull surfaces. Use mirror targets on shiny spots.
Mistake 3: Poor Stance and Aiming
Shaky hands cause error. Bad aim causes error. Rushing causes mistakes.
Fix: Plant feet. Aim with care. Take your time.
Mistake 4: Ignoring Beam Spread
At far range, beam spread matters. A 2-degree beam becomes a 35-meter circle at 1 kilometer. Your shot misses the mark.
Fix: Know your beam spread. Use mirrors at far range.
Mistake 5: Not Documenting Conditions
No notes means no way to explain odd shots later.
Fix: Always write time, temp, surface, blocks, and mirror use.
Mistake 6: Trusting Single Measurements for Critical Work
One shot can be wrong. Heat or bad aim can skew it.
Fix: Always take at least two shots. Take three for key work.
Conclusion & Further Learning
Laser meters have changed surveying. They blend speed, accuracy, and ease. If you are a surveyor, engineer, GIS worker, or builder, learn this tool well.
Key ideas: Pick the right meter. Keep it calibrated. Use good method. Buy good optics. Write down all data. Take many shots.
Surveying keeps changing. Laser meters work with GPS, total stations, and GIS tools. They make strong surveying systems. Stay current. Master your tools. Give accurate surveys.
Start with a basic meter if new to laser measurement. Practice on known spots. Build your skills. Move to pro equipment as your work grows. Quality laser tools pay for themselves through speed, accuracy, and happy clients.
