How does the altimeter work?

Altitude measurement plays a pivotal role in a multitude of fields, from aviation and mountaineering to weather monitoring and space exploration. The ability to accurately determine the height above the Earth’s surface or sea level is a cornerstone for safe navigation, scientific research, and decision-making across these diverse domains. But how does the altimeter work, and what makes it such a vital instrument?

Enter the altimeter – a device that revolutionized how we measure and track altitude. An altimeter is an instrument that determines the altitude or vertical distance above a reference datum, typically sea level. By utilizing principles of atmospheric pressure, altimeters provide accurate readings of an object’s height, whether it’s an aircraft, a mountain summit, or a weather balloon.

What exactly is an altimeter?

An altimeter is a device used to measure altitude or height above a reference datum, typically mean sea level. It is an essential instrument in various fields, including aviation, mountaineering, weather monitoring, and space exploration.

It is essential to distinguish between different types of altitude measurements. An altimeter can provide two altitude readings: height above ground and mean sea level. The height above ground, or absolute altitude, indicates the vertical distance between an object and the Earth’s surface directly below it. On the other hand, height above mean sea level, or pressure altitude, measures altitude relative to the average sea level, which is used as a global reference point.

Altimeters operate on the principle that atmospheric pressure decreases with increasing altitude. As an object moves higher into the atmosphere, the air pressure around it falls predictably. By measuring changes in air pressure, an altimeter can calculate the corresponding change in altitude and provide a precise reading of the object’s height.

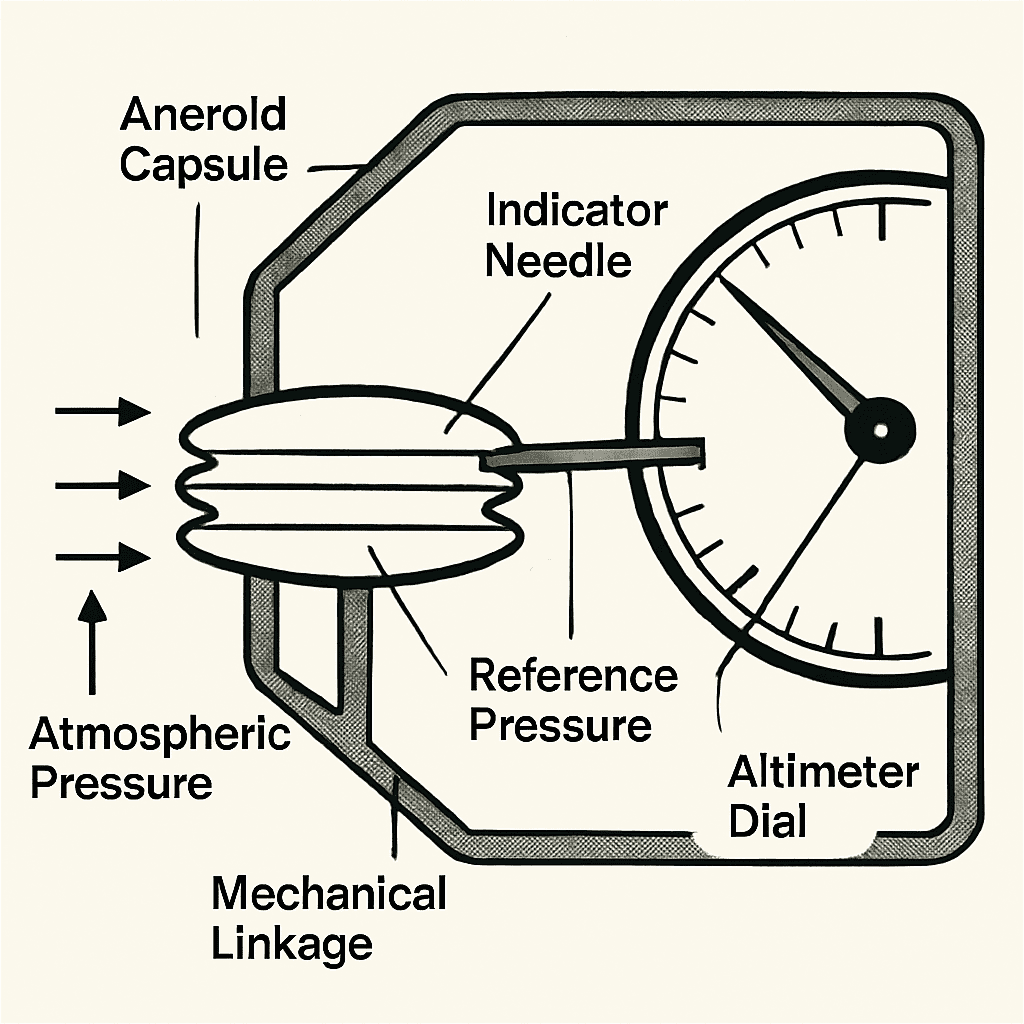

At the heart of a primary altimeter lies the aneroid capsule, a sealed metal or synthetic capsule sensitive to air pressure changes. As the surrounding air pressure decreases with increasing altitude, the aneroid capsule expands, which is measured and translated into an altitude reading.

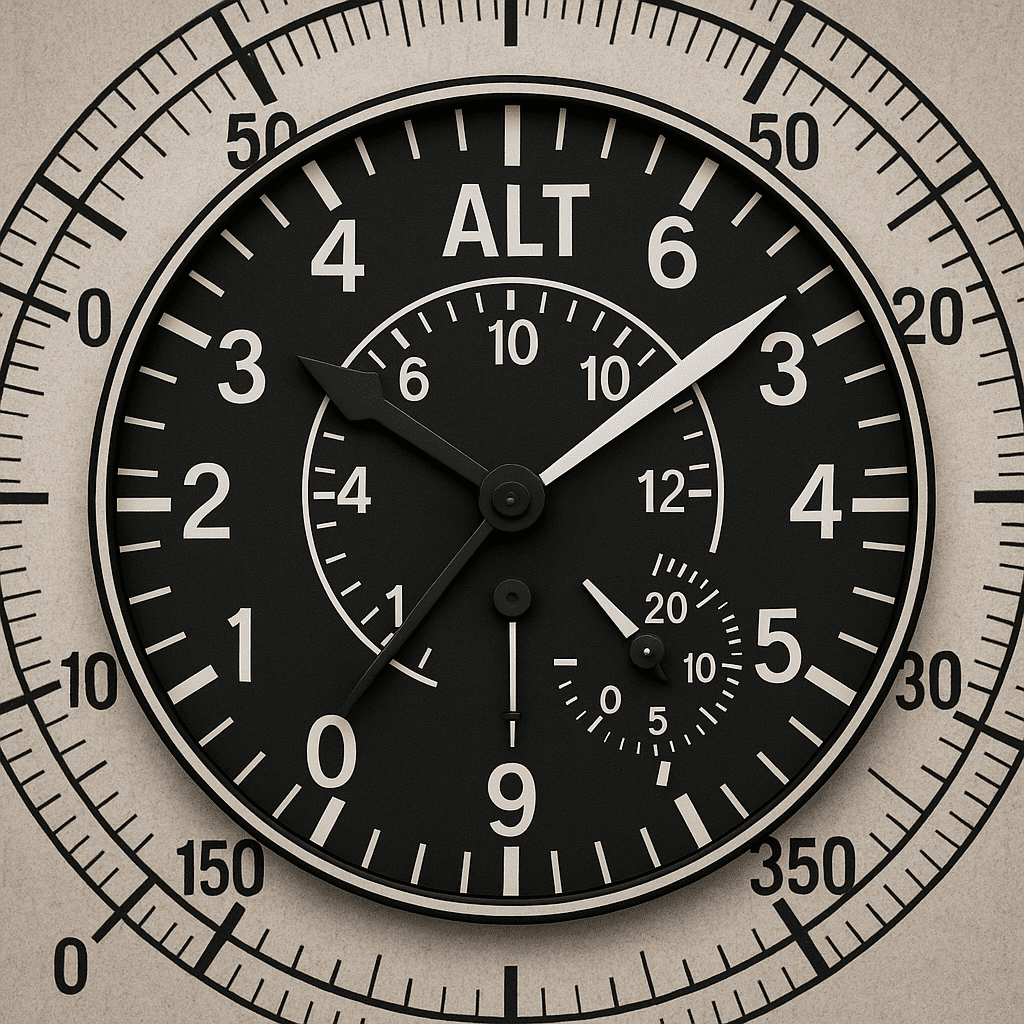

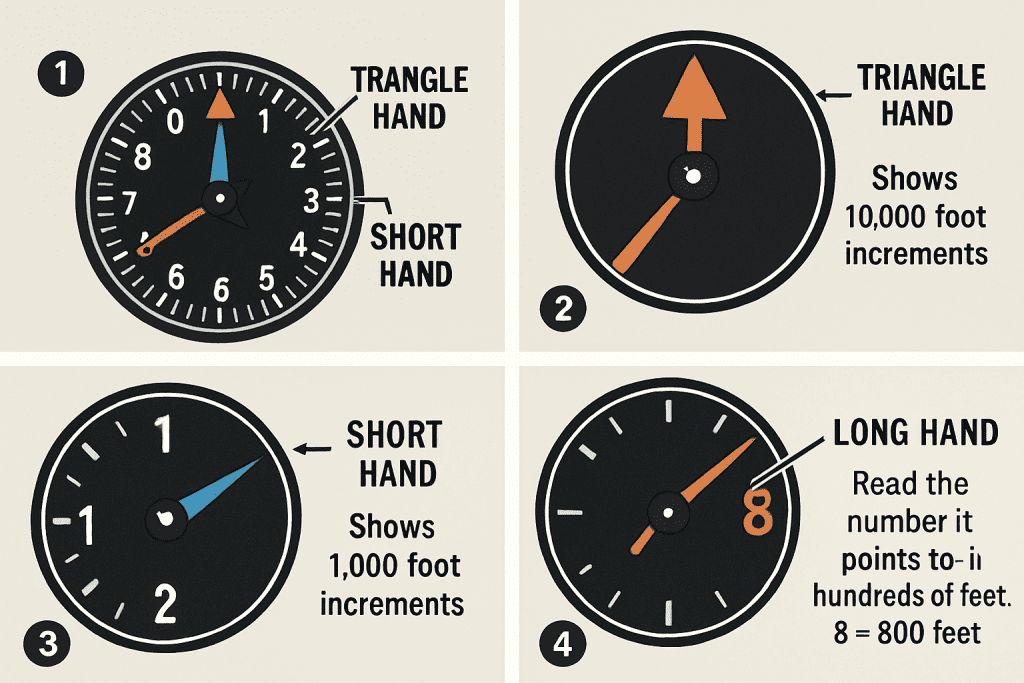

In mechanical or analog altimeters, the expansion of the aneroid capsule is translated into a visual display through a series of mechanical linkages, such as gears, levers, and pointers. The pilot can then read the altitude directly from a calibrated scale or dial.

An exact electronic pressure sensor has replaced the aneroid capsule in modern digital altimeters. This sensor converts the air pressure changes into electrical signals, which are then processed by a microprocessor. Using sophisticated algorithms and calibration tables, the microprocessor calculates the corresponding altitude based on the pressure input and displays the result on a digital screen.

Some critical components of a primary altimeter, whether analog or digital, include:

• Sealed aneroid capsule (in analog altimeters) or electronic pressure sensor (in digital altimeters)
• Mechanical linkages (in analog altimeters) or microprocessors (in digital altimeters) to convert pressure changes into altitude readings
• Visual display, such as a dial or digital screen, to present the altitude information to the user

Altimeters have come a long way, from their early mechanical designs to the highly sophisticated electronic systems used today. Regardless of the technology, they remain crucial for measuring altitude accurately and safely in various applications.

How does the altimeter work?

The altimeter operates on a fundamental principle-as we ascend into the Earth’s atmosphere, the weight of the air above us decreases, resulting in a corresponding drop in air pressure. Altimeters leverage this predictable relationship between air pressure and altitude to accurately measure an object’s height above a reference datum, typically mean sea level.

Working Principle:

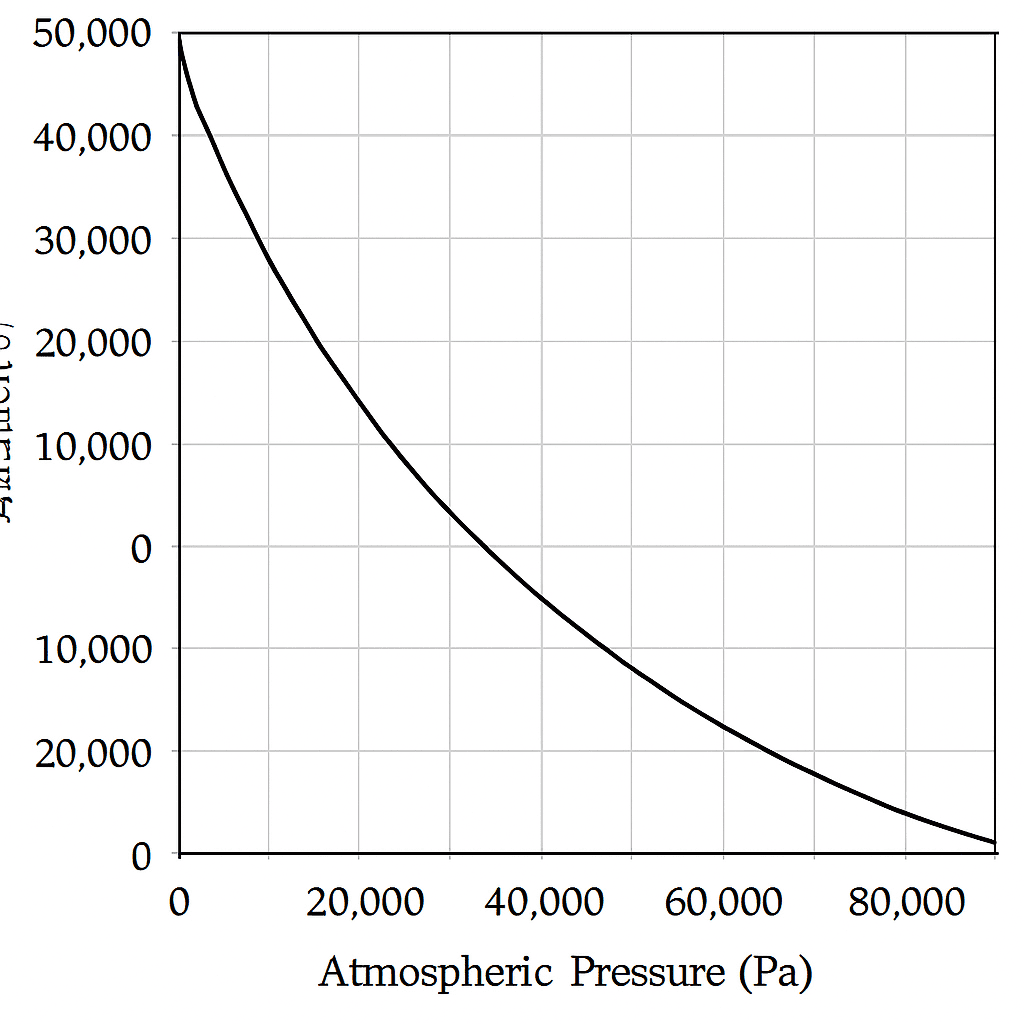

1. Decrease in Air Pressure with Altitude: The Earth’s atmosphere exerts pressure due to the weight of the air molecules above a given point. This atmospheric pressure decreases as altitude increases, following a predictable pattern known as the International Standard Atmosphere (ISA) model.
2. Aneroid Capsule Expansion/Contraction: In older analog altimeters, a sealed aneroid capsule senses changes in air pressure. This capsule is made of a thin, corrugated metal or synthetic material that expands or contracts in response to changes in the surrounding air pressure. As the altitude increases and the air pressure decreases, the aneroid capsule expands, and vice versa.
3. Mechanical Levers Converting Capsule Motion: In analog altimeters, the expansion or contraction of the aneroid capsule is translated into mechanical motion through a series of levers and linkages. This motion moves a pointer or needle across a calibrated scale, indicating the corresponding altitude.
4. Electronic Pressure Sensors: Modern digital altimeters replace the aneroid capsule with susceptible electronic pressure sensors. These sensors convert the changes in air pressure into electrical signals, which are then processed by a microprocessor or onboard computer.
5. Microprocessor Calculations: The microprocessor in a digital altimeter uses sophisticated algorithms to convert the pressure input from the sensor into an accurate altitude reading. These calculations consider factors such as temperature, humidity, and the ISA model to compensate for variations in atmospheric conditions.
6. Calibration and Sea-Level Pressure: Altimeters are calibrated to provide accurate readings based on a known reference pressure, typically the standard sea-level pressure of 1013.25 hectopascals (hPa) or 29.92 inches of mercury (inHg). During operation, the altimeter compares the current air pressure to this reference pressure to calculate the corresponding altitude.

Sources of Error:

While altimeters are designed to provide precise altitude measurements, several factors can introduce errors and uncertainties:

1. Temperature Changes: Fluctuations in temperature can affect the behavior of the aneroid capsule or the electronic pressure sensor, leading to inaccuracies in the altitude reading. Modern digital altimeters often have temperature compensation algorithms to mitigate this error source.
2. Atmospheric Pressure Fluctuations: Local variations in atmospheric pressure, caused by weather patterns or other factors, can deviate from the standard ISA model used for calibration. This can result in altitude reading errors, especially over long distances or in extreme weather conditions.
3. Analog vs. Digital Altimeters: Older analog altimeters are more susceptible to mechanical wear and tear, which can lead to inaccuracies over time. Modern digital altimeters, with their electronic sensors and automated calculations, are generally more accurate and less prone to errors due to mechanical degradation.

Calibration and Adjustment Procedures:

To ensure accurate altitude readings, altimeters require regular calibration and adjustment procedures:

1. Barometric Calibration: Altimeters are calibrated against a known reference pressure, typically the standard sea-level pressure. This calibration ensures the altimeter provides accurate readings at the reference pressure level.
2. Temperature Compensation: In digital altimeters, temperature compensation algorithms adjust the altitude calculations based on the current temperature, reducing the impact of temperature-related errors.
3. Field Adjustments: Pilots and users may need to adjust the altimeter to account for local atmospheric conditions or variations from the standard ISA model. This involves setting the altimeter to the known altitude at a specific location, such as an airport or a known landmark, and allowing it to recalibrate itself.
4. Periodic Maintenance and Recalibration: Altimeters, especially analog models, require regular maintenance and recalibration to ensure their accuracy over time. This involves checking the altimeter against known reference pressures and making necessary mechanical or electronic component adjustments.

By understanding the working principles, sources of error, and calibration procedures, users can ensure that their altimeters continue to provide reliable and accurate altitude information, enabling safe and efficient operations in various applications.

Different kinds of altimeters

Altimeters come in various types and configurations, each designed to cater to specific requirements and applications. While they all share the fundamental principle of measuring altitude based on changes in atmospheric pressure, their implementation and features can differ significantly. Here are some of the primary types of altimeters:

Primary Types:

Analog Altimeters:

• Drum Type Altimeters: One of the earliest and most common analog altimeters, drum-type altimeters use an aneroid capsule connected to a drum mechanism. As the capsule expands or contracts, it rotates a small drum, which, through a series of gears and levers, moves a needle across a calibrated scale, indicating the altitude.

• Clockwork Type Altimeters: These altimeters use a coiled spring to counteract the expansion or contraction of the aneroid capsule. As the aircraft climbs or descends, the capsule’s movement winds or unwinds the spring, causing a pointer to move across a dial displaying the altitude reading.

Digital/Electronic Altimeters:

Digital altimeters replace the mechanical components of analog altimeters with electronic sensors and microprocessors. They use exact pressure sensors to measure changes in air pressure and convert them into electrical signals. A microprocessor then processes these signals, using sophisticated algorithms to calculate and display the corresponding altitude on a digital screen, often an LCD or OLED display.

Aviation Specific Types:

• Radar Altimeters: Radar altimeters are specialized instruments that use radio waves to measure the precise height of an aircraft or spacecraft above the terrain or ground surface. They transmit radio signals and measure the time it takes for the reflected signal to return, calculating the distance based on the speed of the radio waves. Radar altimeters are essential for low-level flight operations and landing maneuvers.
• GPS Steered Altimeters: GPS (Global Positioning System) steered altimeters combine barometric pressure measurements with GPS data to provide highly accurate altitude readings. These altimeters use GPS signals to determine the aircraft’s position and cross-reference the barometric altitude with the GPS-derived altitude, ensuring greater precision and reliability.

Ground-based vs Airborne Altimeters:

While most altimeters are designed for airborne use, there are also ground-based altimeters used for various purposes:

• Ground-based Altimeters: These altimeters measure the altitude of a specific location or ground-based object, such as a building, tower, or weather station. They can be analog or digital and may be calibrated to provide readings relative to mean sea level or a local reference datum.
• Airborne Altimeters: These are the altimeters used in aircraft, spacecraft, and other airborne vehicles. They are designed to withstand the rigors of flight and provide accurate altitude readings during various operation phases, from takeoff to landing.

Differences in Measurement Range, Accuracy, and Display:

Altimeters can differ in their measurement range, accuracy, and display characteristics depending on their specific design and intended application:

• Measurement Range: Altimeters can have varying measurement ranges, from a few hundred feet for ground-based altimeters to tens of thousands of feet for high-altitude aviation altimeters. The range is typically optimized for the specific application and operational requirements.
• Accuracy: Modern digital altimeters generally offer higher accuracy than older analog models. The accuracy can also vary based on sensor technology, calibration procedures, and environmental compensation algorithms.
• Display: Analog altimeters typically feature a dial with a graduated scale and a needle or pointer, while digital altimeters display altitude readings as numerical values on an LCD or OLED screen. Some digital altimeters may also provide graphical representations or additional information, such as altitude trends or alerts.

Choosing the correct altimeter depends on the specific application, operational requirements, and desired features. Understanding altimeters’ different types, capabilities, and limitations is essential for ensuring accurate and reliable altitude measurements in various fields.

Applications of an Altimeter

Altimeters find applications in a wide range of fields, each requiring accurate and reliable altitude measurements for various purposes:

• Aviation: Altimeters are essential instruments for pilots and aircraft operations. They provide critical information on the aircraft’s altitude above mean sea level or above the ground, enabling pilots to maintain safe separation from obstacles, terrain, and other aircraft during flight. Altimeters are indispensable for navigation, descent planning, and landing procedures.
• Mountaineering/Trekking: Adventurers and outdoor enthusiasts heavily rely on altimeters to assess elevation gains and track their progress during hikes, treks, and mountain climbing expeditions. Portable altimeters help climbers monitor their altitude, plan ascents, and gauge their proximity to summits or base camps.
• Skydiving: Altimeters are essential safety instruments that help skydivers determine when to deploy their parachutes at the appropriate altitude. Accurate altitude measurements are crucial for a safe and controlled descent.
• Weather Monitoring: Meteorologists and atmospheric researchers use altimeters to measure the altitudes of weather phenomena, such as cloud formations, atmospheric pressure systems, and wind patterns. This data is crucial for understanding weather dynamics and improving weather forecasting models.
• Military Applications: Altimeters are indispensable for aviation, surveillance, and ground operations. They provide altitude information for navigation, targeting, and situational awareness in various military environments.
• GPS Positioning: Altimeters can be integrated with Global Positioning System (GPS) technology to provide precise three-dimensional positioning data. This combination of altitude and latitude/longitude coordinates enables accurate location tracking, mapping, and navigation in various applications, including surveying, geographic information systems (GIS), and vehicle tracking.

From aviation and outdoor activities to scientific research and military operations, altimeters are vital in ensuring safety, efficiency, and accuracy across various applications where accurate altitude measurement is critical.

Conclusion

In conclusion, altimeters operate on the fundamental principle of measuring changes in air pressure to calculate corresponding changes in altitude. By leveraging this predictable relationship, altimeters provide reliable and accurate altitude information crucial for aviation, mountaineering, weather monitoring, and various other applications.

While current altimeter technology has reached a high degree of sophistication, future advancements in fields like microelectromechanical systems (MEMS) and nanotechnology can further miniaturize and enhance the precision of these instruments.

As technology continues to evolve, altimeters will remain indispensable tools. They provide critical altitude data that enables safe and efficient operations across various industries and activities where accurate height measurements are essential.
