How Does a Laser Tape Measure Work?

Measuring is part of almost every project, whether you are a builder, homeowner, architect, or DIY fan. We all know the classic steel tape—long, heavy, sometimes stubborn and never quite long enough for big jobs. Today, there’s an easier way. The laser tape measure makes it possible to get accurate measurements in seconds with just one hand and push of a button. This tool is now common on job sites, in workshops, and even in kitchen drawers.

This article explains how a laser tape measure works, what benefits it offers, and how you can use one correctly. Every section is written to be easy to read and understand, using short sentences and simple words. Let’s see how this light-powered tool makes your work easier and faster.

What is a Laser Tape Measure?

A laser tape measure is a handheld device. It looks like a small gadget, not much bigger than your palm. Instead of a metal tape, it uses light—a laser beam—to find out how far away something is. To use it, you just aim the device at a wall or object, press one button, and in less than a second, the distance shows up on the screen.

This tool is easy to carry. It fits in your pocket or bag. People use these in building sites, making furniture, planning room layouts, measuring windows or ceilings, and much more.

Main Benefits

Laser tape measures offer big advantages:

  • They work very fast. You get a measurement in a second.
  • They are accurate, often more so than metal tapes.
  • One person can measure even big spaces—no need for a helper to hold the other end.
  • They are safer. No more climbing ladders stretching tapes, squinting to read tiny numbers.
  • Many models can also add, subtract, and even calculate area and volume at a button press.

How Does It Actually Work?

Every laser tape measure uses a tiny but powerful red laser beam. This is a focused line of light, like a small dot you see on your target. The device sends this beam out, bounces off the object, and comes back to a sensor inside the tool. The tool’s computer checks how long the beam takes for this “round-trip” journey.

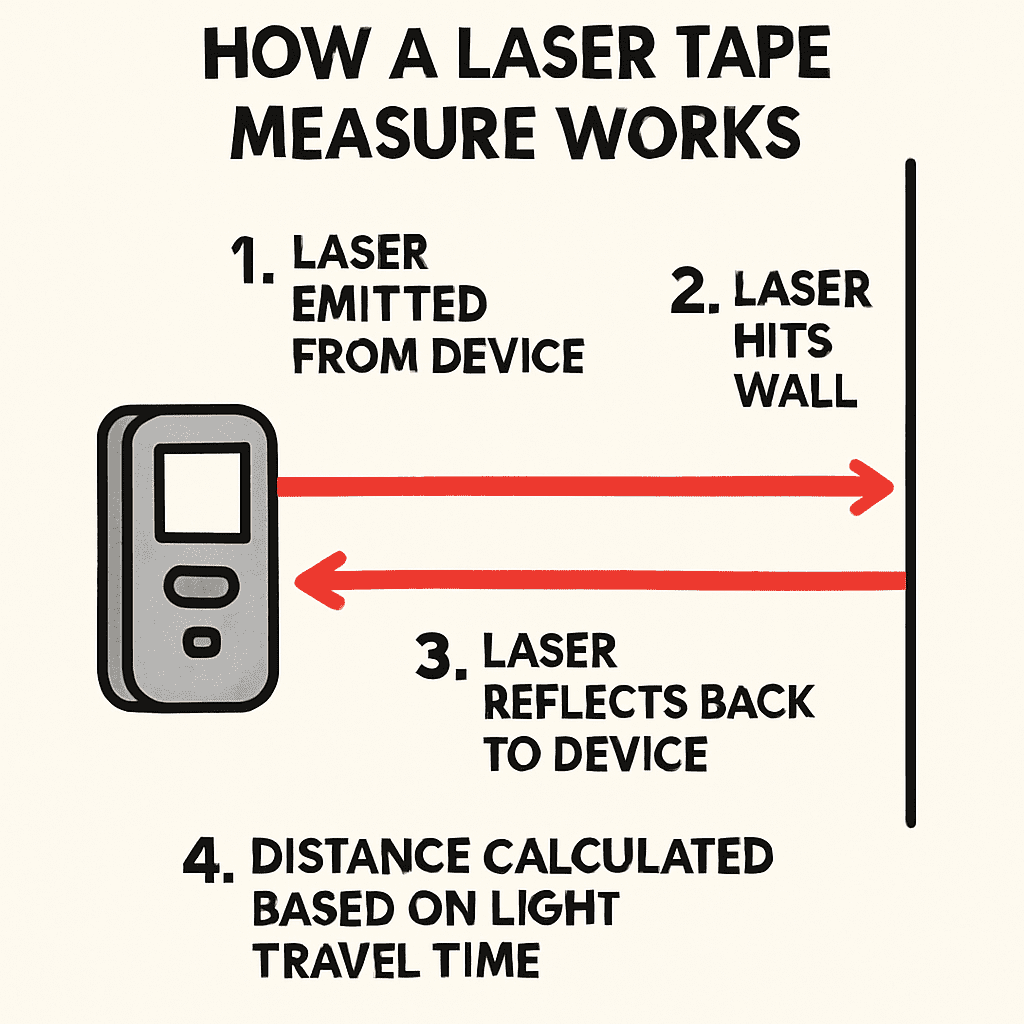

Infographic showing how laser tape measure technology works with light beam paths

Infographic showing how laser tape measure technology works with light beam paths

There are two main methods inside these laser tools:

Time-of-Flight Method

This is the most common way. Here’s how it works:

  • The device shoots out a quick pulse of light.
  • The tool records how long (in billionths of a second!) that pulse takes to reach the wall and come back.
  • It uses the speed of light (about 186,000 miles per second) in its math.
  • The computer then calculates the distance: time times speed, divided by two.

This method is used for longer measurements, even outdoors. Some devices measure up to 600 feet (almost two football fields in length).

Phase Shift Method

This is a little different:

  • The device sends out a continuous light wave, not a single pulse.
  • It checks how the wave changes (the “phase”) when it bounces back.
  • The device compares the outgoing and returning waves and finds the distance from the difference.

This approach gives very fine accuracy (as little as one-sixteenth of an inch). It’s used more indoors or when you need the closest measurements.

Key Parts of a Laser Tape Measure

Every laser tape measure has these main parts:

  1. Laser Transmitter – This part fires the beam of light.
  2. Light Sensor (Detector) – This sees the light when it comes back and turns it into an electrical signal.
  3. Processor – This is like the brain. It does the math, finds the distance, and controls extra features.
  4. Screen and Buttons – The display shows your result clearly. Buttons let you switch modes—distance, area, volume, or memory. Most screens are backlit for reading in dark spaces.
  5. Body and Protection – The plastic or rubber case keeps the parts safe from drops and dust.

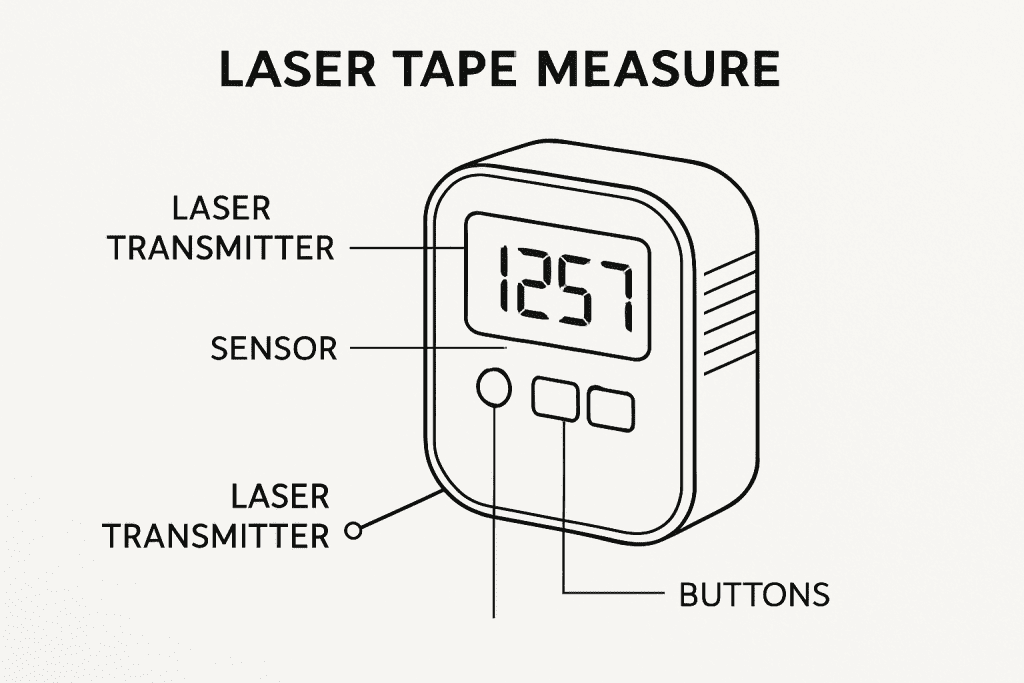

Detailed diagram showing key components inside a laser tape measure

Detailed diagram showing key components inside a laser tape measure

Knowing these makes it easier to use and troubleshoot your device if something goes wrong.

How to Use a Laser Tape Measure: Step-by-Step Guide

Using this tool is simple if you follow these steps:

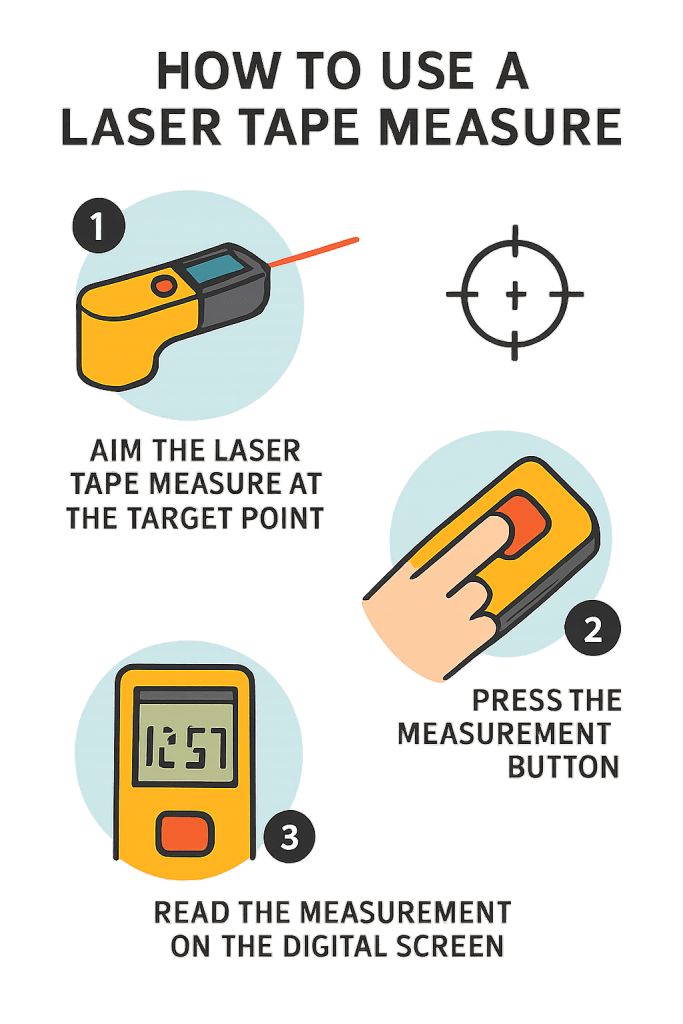

Step-by-step visual guide for using a laser tape measure correctly

Step-by-step visual guide for using a laser tape measure correctly

  1. Turn It On
  • Press the power button. Some devices beep or show a welcome message.
  1. Check Modes
  • Most start in single distance mode. If not, use a button to pick what you need (distance, area, volume).
  1. Set Your Reference Point
  • Some devices let you measure from the front or back of the tool. Pick the right setting (often shown as a little icon).
  1. Aim the Laser
  • Hold the device steady in your hand.
  • Point the red dot at the exact spot you want to measure.
  1. Take the Reading
  • Press the measure button. Wait half a second for the beep or the number to appear.
  1. Check the Result
  • The screen shows the distance. If you want area or volume, keep measuring—follow the prompts for each side.
  1. Record or Save Values
  • Some devices save results for you. Others let you write them down.
  1. Turn Off and Store
  • Hold the power button or let it turn off after a few minutes.

Accuracy and Range Explained

Not all laser tape measures are the same. Basic models can measure up to 100 feet with an accuracy of about 1/8 inch (3 mm). Middle-range models go up to 300 feet, with even tighter accuracy—around 1/16 inch (1.5 mm). Top-tier devices for pros can work over 600 feet, sometimes with accuracy to 1 millimeter!

In the real world, results can change if:

  • The wall is very shiny or very dark (affects how much laser comes back)
  • It’s very bright outside (sunlight can “hide” the laser)
  • You hold the tool at an angle (it works best straight on)
  • Your hand is shaky

For the best results, point the tool straight at the target, use a tripod for long distances, and aim for surfaces that are not too glossy or dark.

When Should You Use a Laser Tape Measure?

Laser tape measures are great for:

  • Laying out rooms for new walls
  • Planning where to put furniture
  • Checking ceiling heights or odd spaces
  • Measuring windows, floors, or siding for repairs
  • Estimating materials for painting, flooring, or roofing
  • Real estate (quickly checking square footage of rooms)
  • Building big outdoor projects like fences and decks
  • Checking distances before installing lights or A/C

Laser vs Traditional Tape: Quick Comparison

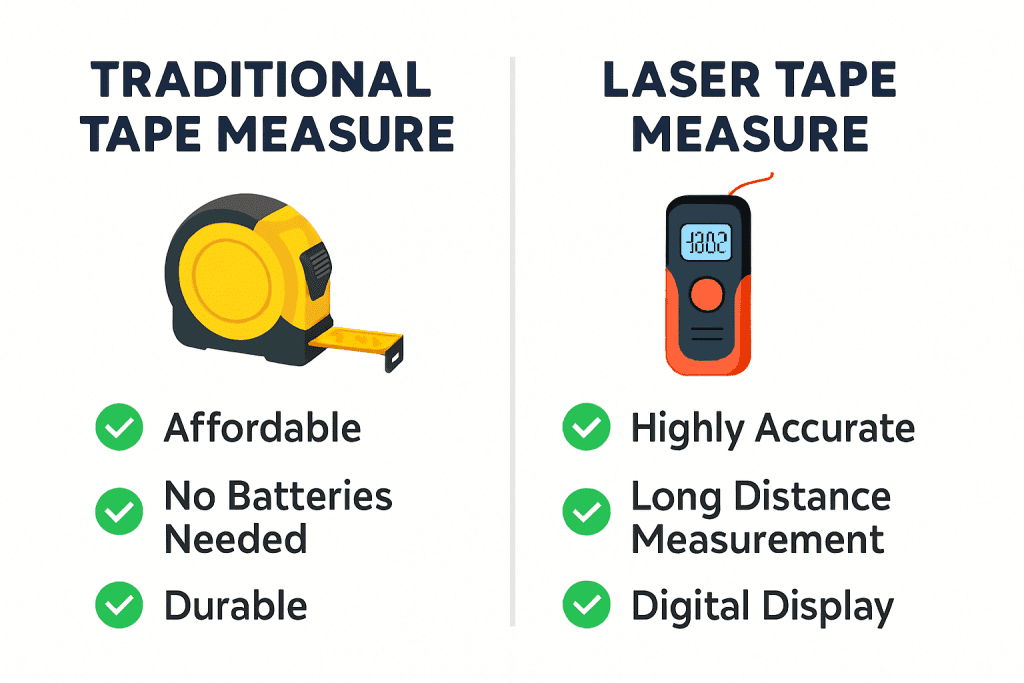

Comparison between traditional tape measures and modern laser tape measures

Classic tapes still work well, especially for short jobs, curved surfaces, or old-school folks who like analog. But for speed, convenience, and long lengths, laser beats tape every time.

Tips for Best Results

  • Use a flat, hard target. Put a small white card or paper on the wall if needed.
  • Don’t block the laser path. Clear away dust, plastic, or clutter between you and the target.
  • Stand steady or use a tripod for long distances.
  • Try measuring indoors out of direct sunlight.
  • Read the manual for special features—some tools do much more than just measure distance.

Safety and Care

Laser tape measures are safe to use, but always:

  • Do not look straight into the laser beam.
  • Never point it at eyes, faces, or shiny things that might reflect.
  • Keep it away from children.
  • Turn it off when not in use.
  • Store in a dry case.

Clean the lens with a soft, dry cloth. Replace batteries as needed, and check for accuracy every few months with a known distance (like a 10-foot floor mark).

Troubleshooting Common Problems

Problem: No reading, or display error
Solution: Check battery, clean lens, remove objects between tool and wall.

Problem: Inconsistent numbers
Solution: Hold tool steady, aim straight, use a flat target.

Problem: Shorter range than expected
Solution: Try a whiter (brighter) target, avoid bright sunlight, change batteries.

If all else fails, read the manual or contact support—most have guides for common error codes (like E1 or E2).

How to Pick the Right Model

  • For home and DIY, look for a model with up to 100–200 ft range. You likely don’t need app pairing or memory storage.
  • For pros in building, surveying, or design, get a model with the longest range and best accuracy you can afford. Bluetooth and large memory can help, too.
  • Want to use your phone? Some models store readings or drawings in phone apps via Bluetooth.

Check that the tool has a warranty and is rugged (for job sites).

Frequently Asked Questions

Q1: Do laser tape measures work outside?
A: Yes, but very bright sun can make readings harder. Use a white card as a target for best results.

Q2: Are they safe?
A: The lasers used are low-power, and accidental brief exposure is not dangerous. Never stare into the beam.

Q3: Can it measure area or volume?
A: Yes! Many models let you measure the length and width (for area) or add height (for volume).

Q4: Are they better than tape measures?
A: For almost all jobs except for very short, curved, or cluttered spaces, laser tape measures are faster, easier, and just as accurate.

Conclusion

A laser tape measure helps make measuring quicker, easier, and safer. With clear screens, simple buttons, and light beams that reach as far as a football field, almost anyone can use one. Use the tips here to pick the right model, practice safe use, and get the most out of your tool. Now, every project—from home fix-ups to construction jobs—just got a lot simpler.
